  L SCAN 100R

 At a Glance    Download






At a Glance

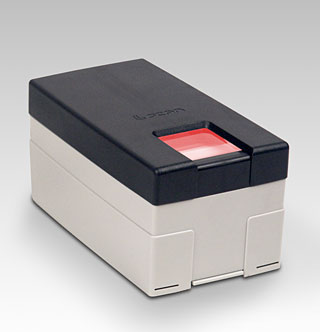

The new L SCAN 100R scanner is a robust and cost efficient solution for capturing both rolled and flat fingerprints.  There are many applications for this product including:  visa application checking, border control, inmate handling and background checks.

Operating the L SCAN 100R is very easy and intuitive, just place the finger on the capture platen and with a click of a button the fingerprint can be scanned.Features include live image display while capturing, compact form factor, modern standard USB 2.0 PC interface, no moving parts, and solid reliability in daily use.



The L SCAN 100R's plastic housing is stylish yet robust and lightweight for use in all environments.

Download L SCAN 100R Product Brochure (150 KB - PDF)



         Features

  • Capturing of live single flat and rolled fingerprints

  • High scanning resolution 500 ppi, compliant to international AFIS standards

  • Standard USB 2.0 computer interface for easiest connectivity and system integration

  • Windows 2000 & XP software

  • Rugged design, stylish housing, coating-free capture platen surface

¡ÅѺÊÙè´éÒ¹º¹

         Specifications

Product Components   Scanner block, driver software (USB interface cable: option)


Computer Requirements Minimum: Pentium-class PC with Microsoft Windows 2000 SP4/higher or XP SP2/higher operating system (min. P4/2 GHz CPU, 512 MB, USB 2.0)


Scanned Finger Types   Single flat finger, single rolled finger


Fingerprint Capture Format 1.24” x 1.24” (31.5 x 31.5 mm)


Scanner Control Elements   None at the device, control and image display is done via the PC


Scanner Power Consumption DC 5 Volts / 500 mA max. = 2.5 VA max


Scanner Power Converter   No internal or external converter module required and scanner is powered via the USB 2.0 interface - therefore, the PC or a USB 2.0 hub with built-in power output provides the supply current to the scanner device


Scanner Interface USB 2.0 interface with USB connector type B


Scanner Interface Cable   Standard USB 2.0 compliant cable, max. length 10 feet (3 m) (cable is an optional component)


Fingerprint Capturing With “live” display on PC via the capture function of the driver software


Scanner Resolution   500 pixels-per-inch (ppi) = 19.7 points-per-millimeter


Scanner Dynamic Range 8 bit, max. 256 gray scales


Scanner Image Quality   Designed to meet the resolution requirements of the Image Quality Specification (IQS) of the FBI's Electronic Fingerprint Transmission Specification (EFTS)


Scanner Output Image Size 600 x 600 pixels (H x V)


Scanner Size: (H x W x D)   3.2”x 3.3” x 6.5” (81 x 86 x 165 mm)


Scanner Weight Approx. 1.3 lbs. (520 g)


Operating Environment   Indoor (Building, Container, Car), on table-top or kiosk integrated


Interface Cable Protection Cable is clamped at the scanner side and protected against access


Scanner Mounting on Desk   Via optional desk mount kit with Quick Snap’n Work mechanic


Operating Conditions +50...+103?F (+10 ...+40?C), 10...80% relative humidity, non condensing, no direct sunlight exposure


Maintenance   Daily maintenance: Keep scanner clean (especially capture platen)


Preventative Maintenance Annual function check (via the application software, no other tools required), consumables: glass cleaner


Target Reliability   MTBF 40,000 hrs., MCBF 100,000 capturings,MTTR 2 weeks (under normal operating conditions)
